About Tuya
1) You can add Password, RFID cards on the APP, it's very convenient.
2) You can open the door with Tuya APP unlocking button, or Tuya password.
3) A periodic password can be set, and the password is valid for a certain period of time.
4) You can also set a one-time password to open the door, and the password will expire after being used once within 6 hours.
5) Supports sharing password via WeChat, Email and SMS.
6) Can view unlock records. Click reminder information to view logs.
Product Specification:

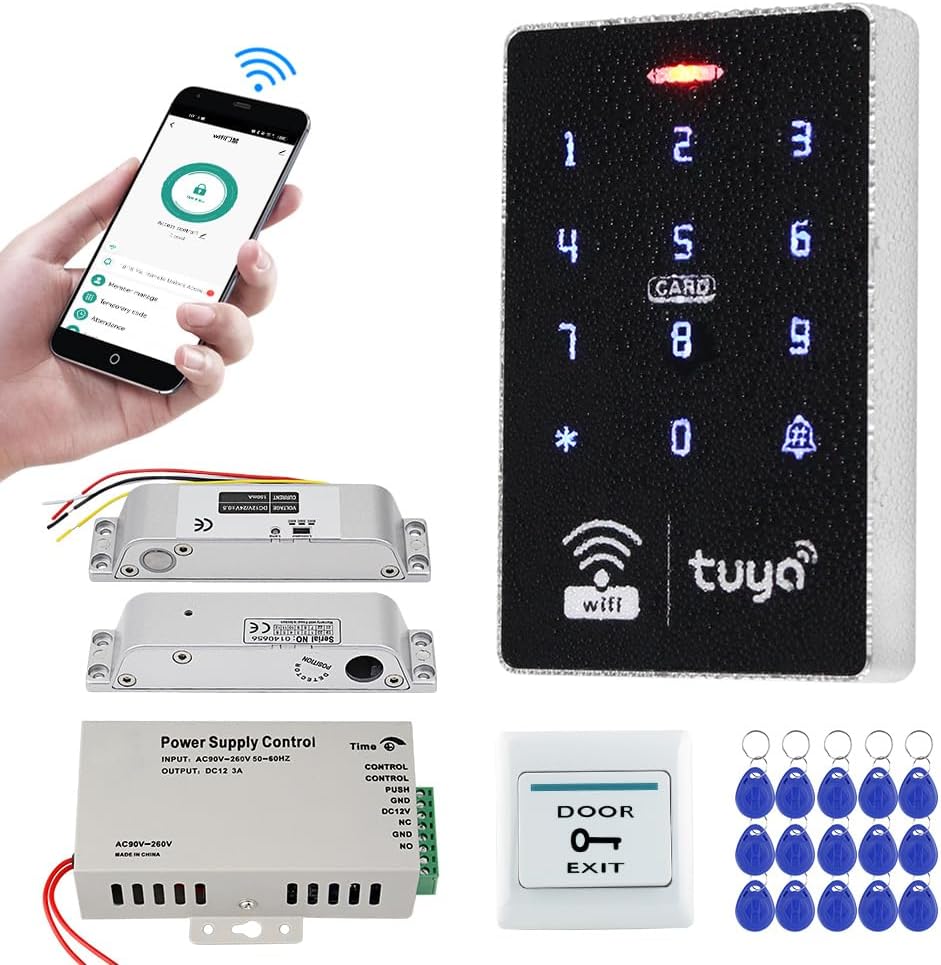

WiFi Tuya RFID Access Control Keypad
User capacity: 1000 user
Material: high quality ABS
Panel: touch screen panel
Working frequency: 125KHz and 13.56MHz
Card reading type: support EM and MF 1K compatible card
Card reading distance: 0-5CM
ldentification method: RFID card, Password, RFID Card plus Password, Tuya APP remote unlock.
Record capacity: Tuya APP remotely view the latest lock opening information
Backlight: has blue backlight

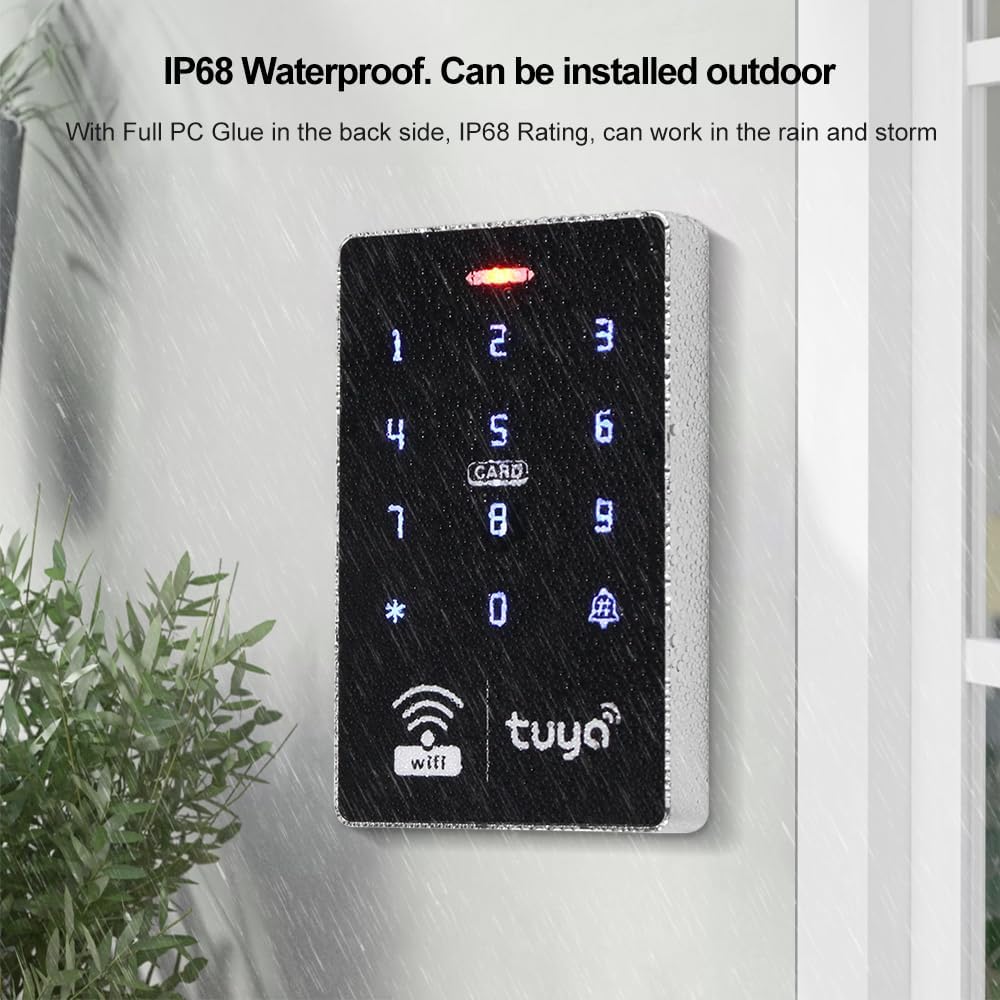

Waterproof function: IP68 waterproof, can be installed outdoor
Doorbell button: support wired doorbell
Wiegand signal: WG26/34 output
Working voltage: DC 12V
Working current: ≤3A
Door opening time: 0~99 seconds
Can set Management card: Yes
Working temperature: -20 ~ 70 Degrees Celsius

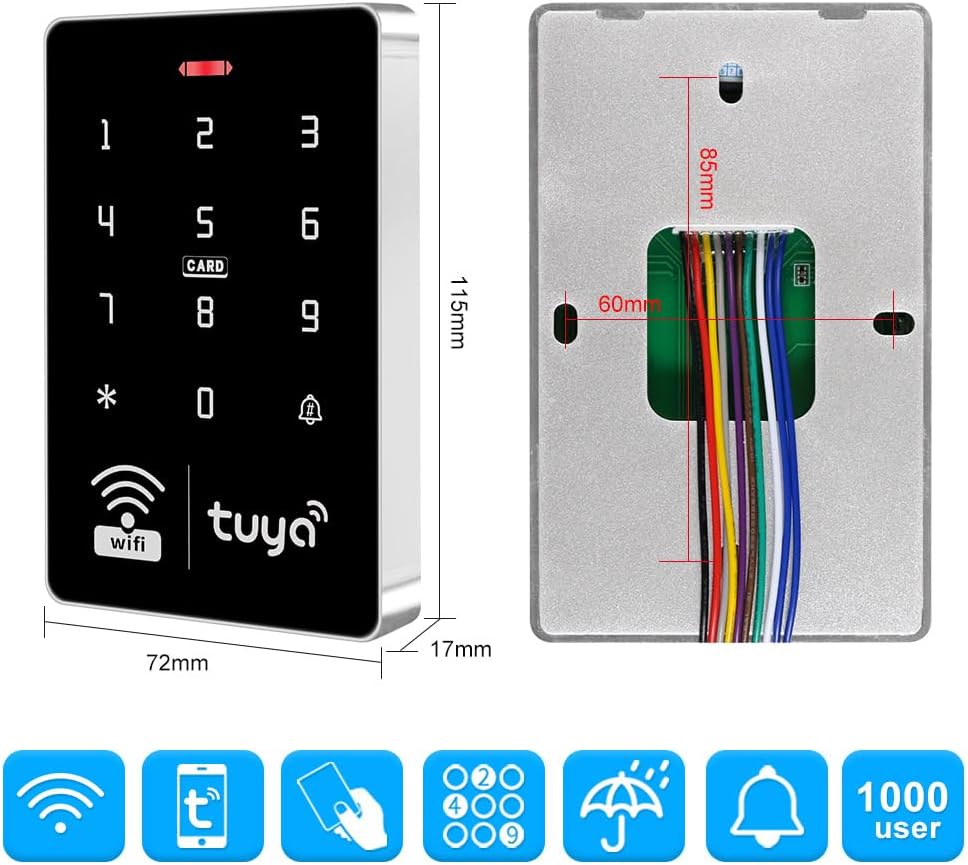

Product size: 115*72*17mm

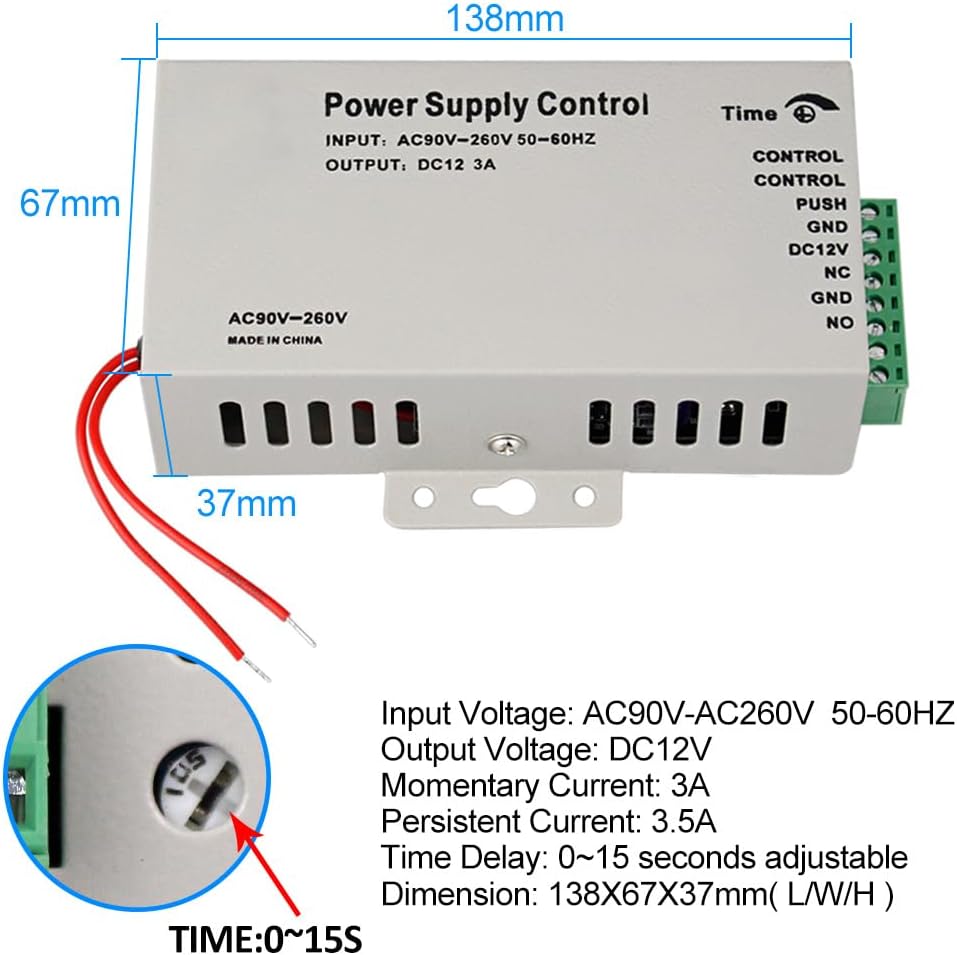

Power Supply
Material: stell
AC input: Standard AC100V-260V / 50-60HZ
DC output: DC12V/ 3 A
Time delay: 0-15 seconds adjustable
Dimension: 140X67X33mm( L/W/H )
Electric Drop Bolt Lock
Material: Aluminium Alloy
Working Voltage: DC12V
Dimension: 150*34*28 mm
Secure Mode: NC model/ fail safe model ( The door will be locked when power on, open when power off. )
Suitable for door: wooden, metal door.
Working Current: star-up: 1.2A, operating: 0.25A

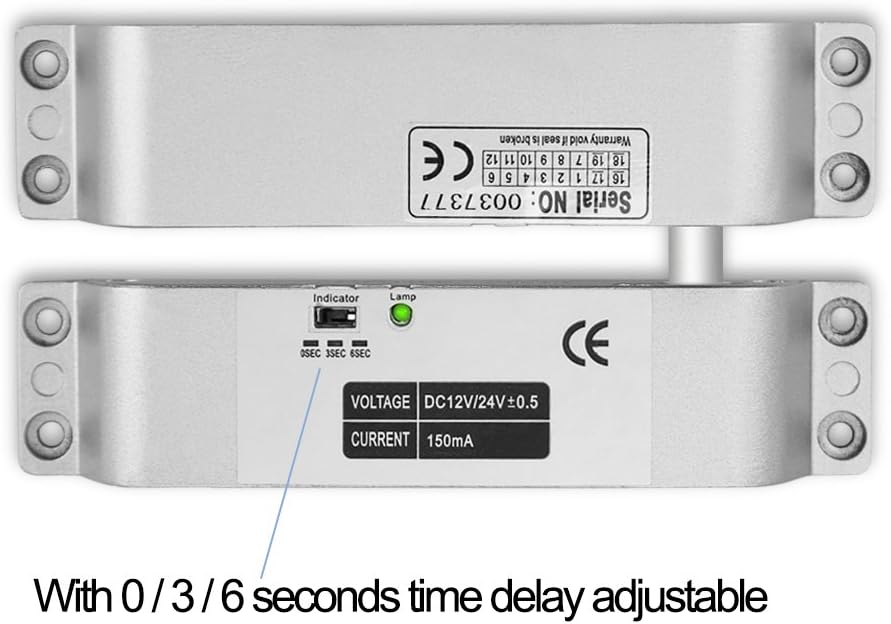

Time delay: 0, 3, 6 seconds adjustable on the lock.
